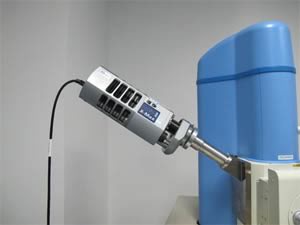

Energy-dispersive X-ray Spectroscopy

Model: Oxford INCA-MAX20

1.         A unique probe of large-area SDD.

2.         Up to 16mm² effective living area (the 20mm² crystal size).

3.         Input count rate > 500,000 cps.

4.         Acquisition count rate >200,000 cps.

5.         Mn K a typical resolution of <125eV, C Ka-<48eV

6.         Unique electronic trap design makes greater collection angle

7.         High vacuum package, reducing the loss of low-energy X-ray greatly

8.         Special SDD pulse processor

9.         Probe has the same dimensions of 10mm² probe

10.     Probe automatic control of telescopic

11.     High counts under the peak correction
