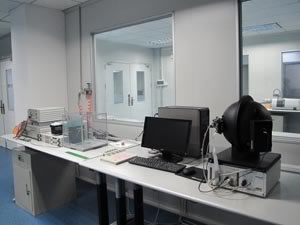

Thermal Transient Tester

Model : MicRed T3Ster

Main system: T3ster

       Driving unit:

              Constant voltage driving mode: U = ±10.24V, (Maximum Current=2A, LSB=5mV)

Constant current driving mode: I = ±2A, (Maximum voltage = 8V, LSB=1mA)

       Sensing unit:

              Measuring range: 400mV / 200mV / 100mV / 50mV, ±5V offset

              Accuracy: 12bit

              Noise: ±1bit

              Sampling rate: 11μ to 8s

              Sample volume: 64K per channel

              Testing time: 10μs

       Power amplifier: T3ster-Booster

              Mode 1: 10A/150V, Mode 2: 10A/300V

Test box: JEDEC Standard test box

Thermostat:

       Use thermoelectric cooling

Temperature range: 5℃~90℃

Accuracy: ±0.2℃

Stabilizing time: 90s for 10℃ increment

Chamber size: 56×56×10 mm³

       Heat dissipation: 8W
