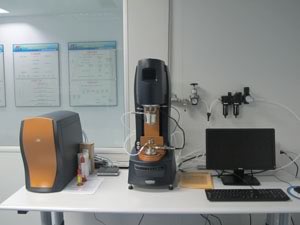

Rheometer

Model : TA DHR-2

Performance  (TA DHR2)

Minimum torque oscillation       2 nN•m

Minimum torque steady             10 nN•m

Maximum torque                        200 mN•m

Torque resolution                       0.1 nN•m

Displacement resolution             10 nrad

Angular velocity range                0-300 rad/s

Frequency range                         1E-7 to 100Hz

Temperature range                     Ambient - 400oC

UV Curing Accessories

Variable Wavelength Omnicure™ 2000 Light

Wavelength                               320-500 nm standard

Irradiance range                         2-9900 mW•cm-2

Temperature range                    Ambient - 50oC

Applications

Viscosity of high viscosity liquids, pastes,  and polymer solutions and melts

Viscosity of LED encapsulant, solder paste, flux, underfill, die-attach adhesive, glob top encapsulant,  etc for electronic   packaging industry

Curing profile of thermoset plastics and UV-curing adhesives and encapsulant

Rheology of polymers

Viscoelasticity of polymers

Typical Viscosity Values (Pas)

Asphalt Binder ------------------ 100,000

Polymer Melt --------------------1,000

Molasses -------------------------100

Liquid Honey --------------------10

Glycerol --------------------------1

Olive Oil --------------------------0.01

Water ---------------------------- 0.001

Air -------------------------------- 0.00001

Sample Requirements

Viscous sample: 0.5-2cm3

Solid sample: 1-2 mm in thickness, 20, 25 or 40 mm in diameter
